Triple decker bus

Alexander Age 8

Tamworth, UK

This idea has been made real

Newcastle, North East UK, UK

Chris, Aka Dabble Dabble, is an artist living in the North-East of England with a healthy obsession with science, tinkering, and engineering. He says 'Mostly I just love making things, all sorts of things, but primarily I'm a participatory artist with a background in animation and a personal practice in printmaking and ceramics'.

Magnificent maker3 made real3 working on

Maker blog entries

Christopher Folwell has been working on making this idea real.
Triple Decker Bus Build
Posted by Christopher Folwell

There's a delicate balance between wonderful and realistic when building a little invention, if you go too far one way or the other then it can turn out unrecognisable, or worse - boring!
For the triple decker bus I wanted to lean into the wonderful by taking that wacky exaggerated height from Alex's design, and ground it in reality with lots of little details from real busses.

I knew the trickiest bit from the start would be the windows, a reflective surface seemed the most sensible idea, it makes them instantly recognisable without having to go to all the detail of building an interior. I wanted to inlay them flush with the rest of the bus or I knew they would look a bit clumpy and would be prone to breaking off, so that dictated the rest of the build. MDF was perfect for the main shell, it's a really versatile material for this sort of work; it can be finished nicely with a lick of paint, and it can be carved very easily with a nice sharp chisel to recess all the window panes.

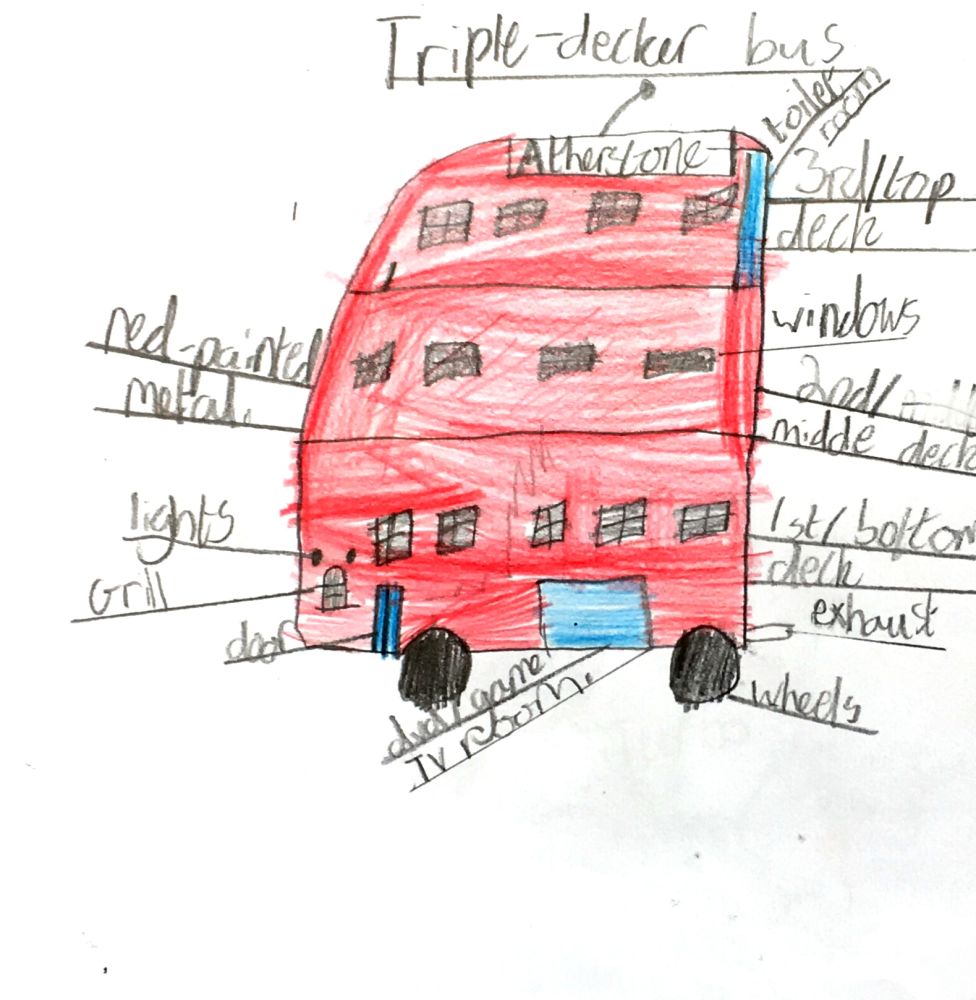

While the windows dictated the materials, the actual bus components determined the size. I had to buy model wheels, and lights so I would have to fit the bus to these, and made a set of plans by scaling up Alex's design and tracing it onto card then cut all my MDF to size and glued it together. Next I cut all of the windows from mirrored plastic sheet, basing the shapes on photos of real double decker busses. Next I cut the recesses for each window using a very sharp carving tool and the actual windows as templates.

After all the recesses were cut but not fitted I started to prepare it for painting, I had to sand a radius on each edge to make it look a bit more like a real bus, and sand the whole thing all over to get a nice smooth paint job. I sealed the MDF to stop it soaking up all the paint, then primed it in grey to give it a flat base coat, then gave it 2 coats of a lovely bright glossy red paint.

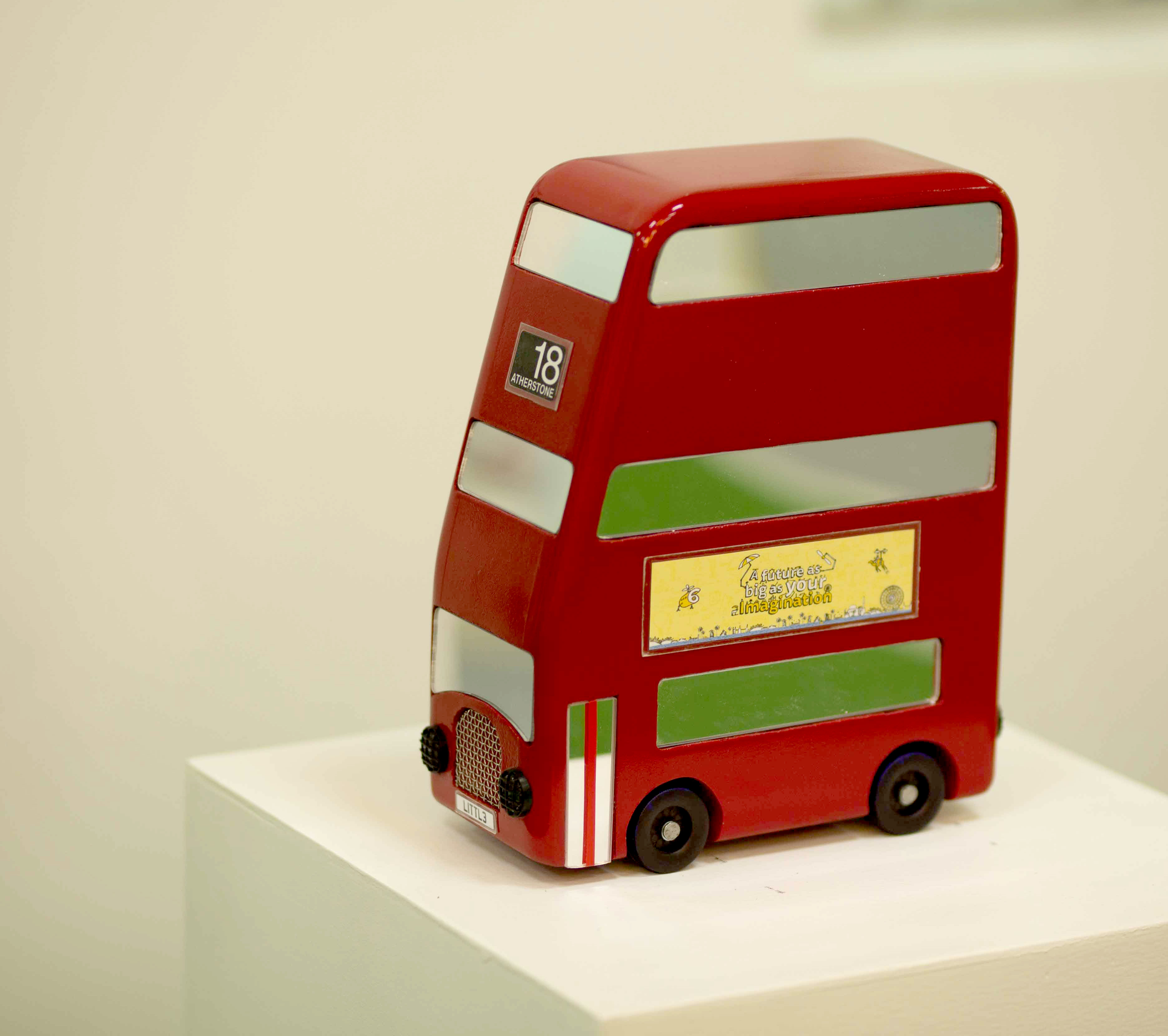

After that I just had to fit the windows and all the extra bits and bobs - lights, a grill made from aluminium mesh, some number plates (L1TTL3 1NV3NT0R), a destination, and a nice big advertisement. Most of these were simple print outs stuck onto very thin plastic sheet with a very wide sellotape.

I really pleased with how it came out, and I hope Alex liked seeing his design come to life!
It turned out to be quite a challenging build, the MDF kept splitting so there was lots of superglue and repairs that were thankfully covered up by that swanky red paint job!
